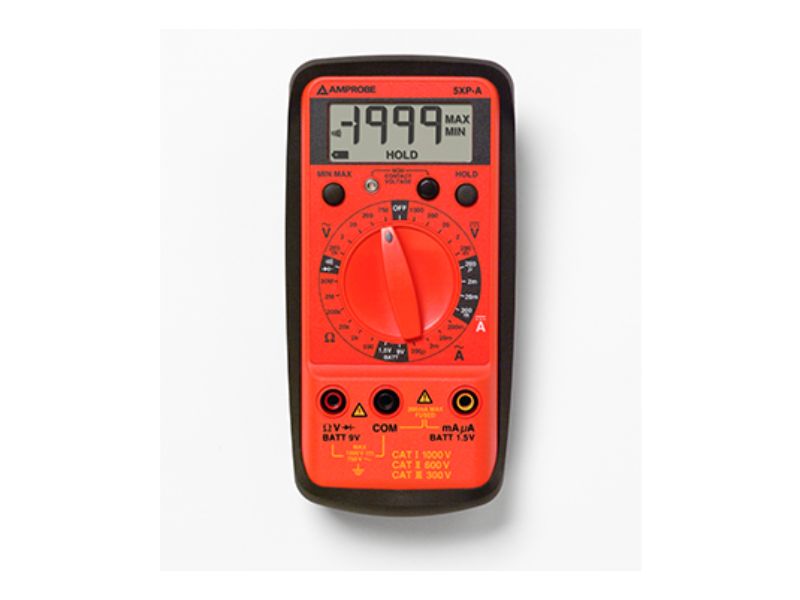

Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect

27 ranges/10 functions
Battery load test with 1.5 V and 9 V capabilities
Data Hold
Min/Max record minimum and maximum values
VolTect™ non-contact voltage (NVC) detection
Low battery indication
Safety rated CAT II 600 V, CAT III 300 V

SKU: 2727851 Category: Discontinued

Description

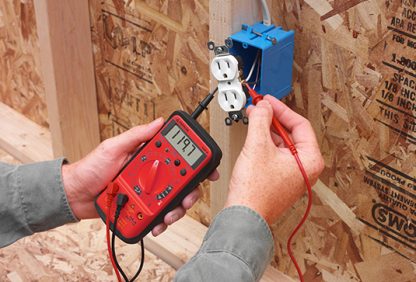

The Amprobe 5XP-A Digital Multimeter provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the perfect choice for residential, commercial and general troubleshooting applications.

Specification

FEATURE	5XP-A
DC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
AC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
Current AC/DC	200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA
Resistance	200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ
Continuity beeper	•
VolTect™ Non-Contact Voltage Detection	70 V AC → 600 V AC (50 Hz → 60 Hz)
Capacitance	–
Frequency	–
Temperature	–
Logic test	–
Battery test	1.5 V, 9 V

Specifications
DC Volts ranges	200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.0 % rdg + 1 dgt)
AC Volts (45 Hz to 500 Hz) ranges	200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.5 % rdg + 5 dgts)
Voltage resolution	100 µV
Voltage input impedance	10 MΩ
Overload protection	200 mV: 600 V DC or 600 V AC RMS (3 minutes) All other ranges: 600 V DC or 600 V AC RMS
DC Current ranges	200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (1.5 % rdg + 1 dgt)
AC Current (45 Hz to 500 Hz) ranges	200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (2.0 % rdg + 5 dgts)
Current resolution	0.1 µA
Input protection	315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input
Burden voltage	300 mV max. (1 V max. on 200 mA range)
Resistance	200 Ω , 2 kΩ , 20 kΩ , 200 kΩ Accuracy: ± (1.0 % rdg + 4 dgts)
	2 MΩ Accuracy: ± (1.5 % rdg + 4 dgts)
	20 MΩ Accuracy: ± (2.0 % rdg + 5 dgts)
Resistance resolution	100 mΩ
Open circuit voltage	0.3 V DC typical, (3.0 V DC on 200 Ω range)
Overload protection	600 V DC or 600 V AC RMS
Continuity	75 Ω ± 25 Ω, Response Time: 100 ms Audible indication
Diode test current	1.0 mA (approximate) ±(1.5 % rdg + 3 dgts)
Diode test resolution	1 mV
Open circuit voltage	3.0 V dc typical
Non-contact voltage indicator	Sense voltage 70 V to 600 V AC; beeper chirps and bright red LED on, works on all ranges
Battery test	1.5 V, 9 V Accuracy: ± (3.5 % rdg + 2 dgts)
