- True-rms sensing increases measurement accuracy in noisy environments
- Measures AC/DC current up to 1000 A, AC voltage to 1000 V and DC voltage to 750 V, frequency, resistance, and capacitance and duty cycle
- Peak hold checks transients and motor start currents for spikes
- Relative zero displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Audible continuity helps quickly identify opens and shorts
- Auto and manual ranging for measurement speed and flexibility
- Data hold holds the reading on the display for further analysis
- Diode test quickly finds voltage drops
- Accommodates conductors up to 2″ (51 mm) in diameter
- Safety rated to CAT IV 600 V and CAT III 1000 V
- Auto power off conserves battery life
- Backlight makes it easy to read even in dark conditions
Description

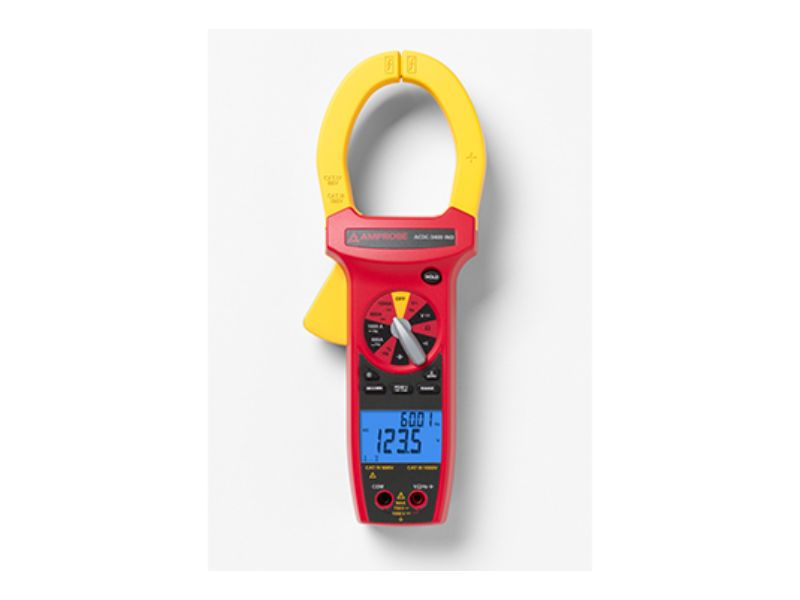

The Amprobe ACDC-3400 clamp multimeter is CAT IV rated to add an extra level of safety for high voltage, industrial or utility testing applications. It is an AC/DC current clamp meter and a voltage meter all in one.
This clamp-on electrical multimeter includes True RMS sensing for accuracy and dependability and extra large jaws to clamp around conductors up to 2″ (51 mm) in diameter.
Specification
FEATURE
|
ACD-3300 IND
|
ACDC-3400 IND
|
DC Voltage
|
660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
|
|
AC Voltage
|
660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
|
|
AC Current
|
66.00 A, 660.0 A, 1000 A
|
|
DC Current
|
–
|
660.0 A, 1000 A
|
Resistance
|
660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
|
|
Capacitance
|
6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF
|
|
Frequency
|
66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
|
|
Continuity
|
•
|
|
Temperature
|
-30 °F → 1832 °F (-35 °C → 1000 °C)
|
–
|
Accommodates conductors
|
up to 2.0″ (51 mm) in diameter
|
|
Specifications
|
|
DC Volts range
|
660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
|
Accuracy
|
+/- (0.5% rdg + 2 dgts)
|
Input impedance
|
660 mV: >100 MO; 6.6 V:10 MO; 66 V to 1000 V: 9.1 MO
|
Overload protection
|
1000 V DC or 750 V AC rms
|
AC Volts True-rms range
|
660.0 mV Frequency 50 to 100 Hz, +/- (1.5% rdg + 8 dgts)
6.600 V, 66.00 V Frequency 50 to 500 Hz, +/- (1.5% rdg + 8 dgts)
660.0 V, 750 V Frequency 50 to 500 Hz, +/- (1.5% rdg + 8 dgts)
|
Frequency* (*10% to 100% of voltage range)
|
50 to 1 kHz, +/- (0.1% rdg + 5 dgts)
|
Auto power off
|
Approx. 30 minutes
|
Display
|
3″ digit liquid crystal display (LCD) (6600 count) with a 66-segment analog bar-graph
|
Power
|
Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
|
