- Measures AC/DC voltage up to 1000 V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle
- Dual thermocouple takes simultaneous temperature readings on low and high side of an HVAC system
- Low pass filter accurately measures voltage on variable frequency drives
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- Peak hold (crest) captures and holds the peak value of a voltage or current surge
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments
Description

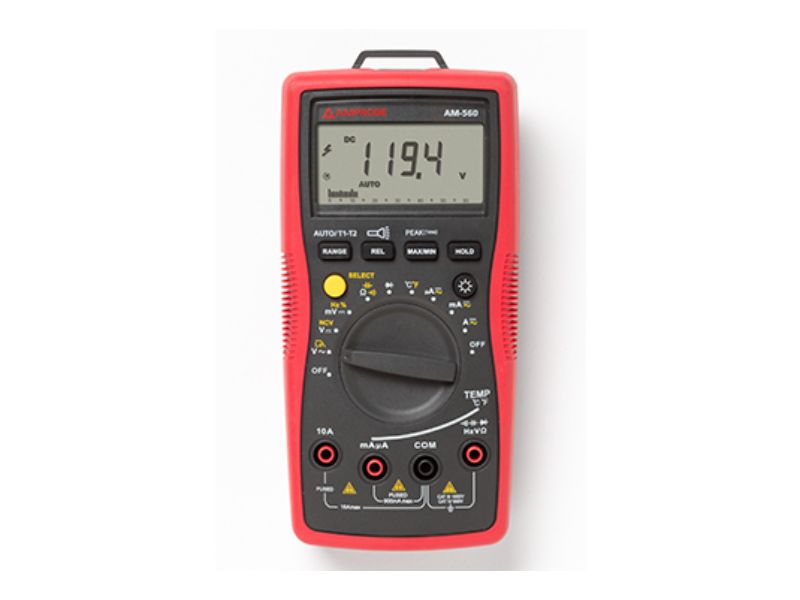

The AM-560 autoranging digital multimeter is specifically designed for advanced HVAC applications. This HVAC multimeter offers a full set of professional digital multimeter features to measure a complete range of electrical parameters and key functions for HVAC applications. Dual thermocouples take differential temperature measurements; a low pass filter enhances accuracy on variable frequency drive measurements; and capacitance can be used to check motor startup capacitors. The AM-560 also features micro amps for flame sensor troubleshooting, non-contact voltage detection, and a CAT IV safety rating.
Specification
FEATURE
|
AM-560
|
Best Accuracy
|
AC Voltage
|
6.000 V, 60.00 V, 600.0 V, 1000 V
|
+/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 0 V to 600 V |
DC Voltage
|
600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V |
+/- (0.5% rdg + 2 LSD) @ 6 V to 600 V ranges |
AC Current
|
600.0 μA, 6000 μA, 60.00 mA, 500.0 mA, 10.00 A |
±(1.2% Rdg + 5 LSD) @ 600 μA to 6000 μA ranges, 45 Hz to 400 Hz |
DC Current
|
600.0 μA, 6000 μA, 60.00 mA, 500.0 mA, 10.00 A |
±(1.0% Rdg + 2 LSD) @ 600 μA to 6000 μA ranges |
Frequency
|
60.00 Hz, 600.0 Hz, 6.000 kHz, 60.00 kHz, 600.0 kHz, 6.000 MHz, 60.00 MHz |
+/- (0.1% rdg + 3 LSD)
|
Resistance
|
600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ 6.000 MΩ 60.00 MΩ |
+/- (1.0% rdg + 2 LSD) @ 6 kΩ to 600 kΩ ranges |
Capacitance
|
60.00 nF, 600.0 nF, 6.000 μF, 60.00 μF, 600.0 μF, 6000 μF, 60.00 mF |
+/- (3.0% rdg + 5 LSD) @ 600 nF to 60 μF ranges |
Temperature
|
-40 ⁰F to 1832 ⁰F -40 ⁰C to 1000 ⁰C |
+/- (1.0% rdg + 12) @ >104 ⁰F to 752 ⁰F +/- (1.0% rdg + 8) @ >40 ⁰C to 400 ⁰C |
Number of temperature inputs
|
Dual Thermocouple
|
|
Duty cycle
|
10.00% to 90.00%
|
+/- (1.2% rdg + 30 LSD) @ 5 Hz to 2 kHz
|
