- Tests battery Impedance to calculate its true life
- Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500 Ah
- Resistance measurement up to 40 ohms, and voltage up to 40 V
- Tests are performed without shutting down a battery
- Simultaneously measure battery resistance and voltage
- Comparator function to quickly access conditions as pass, warning, or fail
- 99 memory locations to store results with read function
- Compact and lightweight
- RS232 PC interface to download testing results to a PC for trending/life cycle analysis
Description

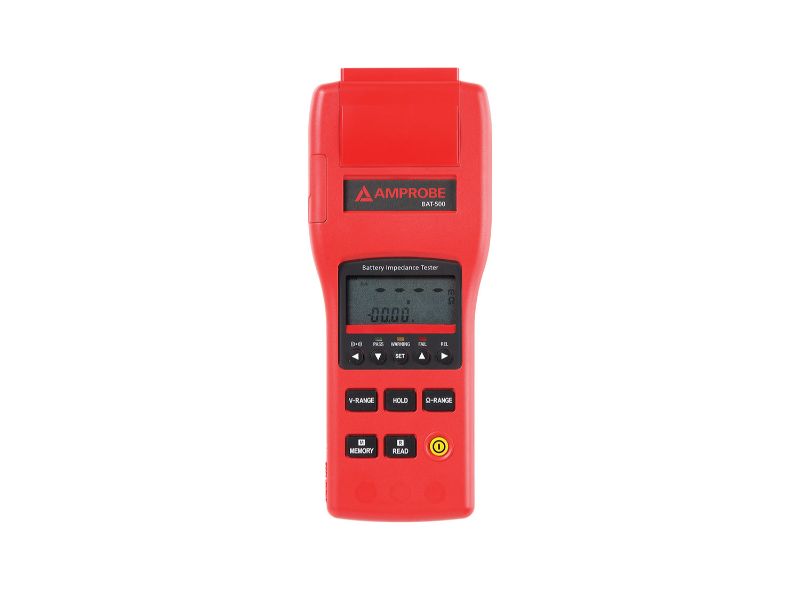

Amprobe BAT-500 Battery Tester quickly and accurately tests batteries without taking the batteries off-line. This Battery Tester features a comparator function with pass/fail indication, and speed testing of batteries up to 500 Ah. Amprobe BAT-500 Battery Tester, compact and light weight, simultaneously measures battery resistance and voltage up to 40 V.
Specification
Features |
BAT-500 |
Maximum battery capacity |
Up to 500 amp hours |
Battery type |
Alkaline, nickel-metal hydride (NiMH), nickel-cadmium (NiCd), lithium-ion (Li-ion) and lead-acid batteries |
DC Voltage |
4.000 V, 40.00 V |
Impedance |
40 mO, 400 mO, 4 O, 40 O |
Data capture memory |
500 data sets |
Data logging memory |
9600 data sets |
PC Download |
• |
Specifications |
|
Battery capacity |
0 to 500 AH |
Resolution |
10 µO, 100 µO, 1 mO, 10 mO |
Accuracy |
±(1%reading ±10digits) |
Open circuit voltage |
3.5 V pp max |
Measurement current |
25 mA approx., 2.5 mA approx., 250 µA approx., 25 µA approx |
Measuring current frequency |
1 KHz ±10% |
Voltage measurement range |
4 V, 40 V |
Resolution |
1 mV, 10 mV |
Accuracy |
±(0.1% rdg ±6 digits) |
