- Improve accuracy and performance when there is no access to bare conductors
- For use with Amprobe’s AT-6000 Advanced Wire Tracer Series – included with the AT-6030 kit
Description

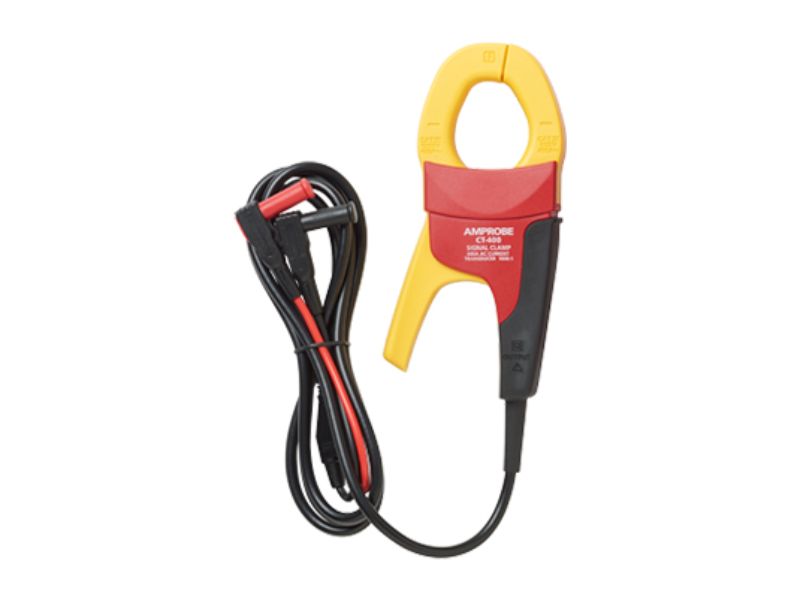

The CT-400 Signal Clamp accessory is used to induce a signal into wires without access to bare conductors. For use with Amprobe’s Advanced Wire Tracers.
Specification
Measurement category
|
CAT IV 600 V, CAT III 1000 V
|
Operating voltage
|
0 to 1000 V AC
|
Operating frequency
|
Wire tracing: 32.768 kHz AC current measurement: 45 Hz to 400 Hz |
Response time
|
Instantaneous
|
Current output of signal (typical)
|
1 mA/A for AC current measurement with multimeter
|
Signal voltage output (nominal)
|
De-energized circuit: 2.4 V RMS, 24 Vp-p
|
Operating temperature
|
32 °F to 122 °F (0 °C to 50 °C)
|
Operating humidity
|
95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C) |
Storage temperature and humidity
|
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH
|
Operating altitude
|
0 to 6561 ft (2000 m)
|
Pollution degree
|
2
|
IP rating
|
IP 40
|
Drop test
|
3.28 ft (1 m)
|
Maximum conductor size
|
1.26 in (32 mm)
|
Dimensions (L x W x H)
|
Approx. 5.9 x 2.75 x 1.18 in (150 x 70 x 30 mm) |
Weight
|
Approx. 0.25 lb (0.114 kg)
|
