- The ultimate component checker measures inductance,capacitance, resistance, transistors, diodes and microwave diodes
- Plug-in test slots and test leads with threaded alligator clips
- Oversized, digital display
- Data hold and max hold
- “Zero adjust” pot for Ohms
- Low battery indication
- Auto-power off
Description

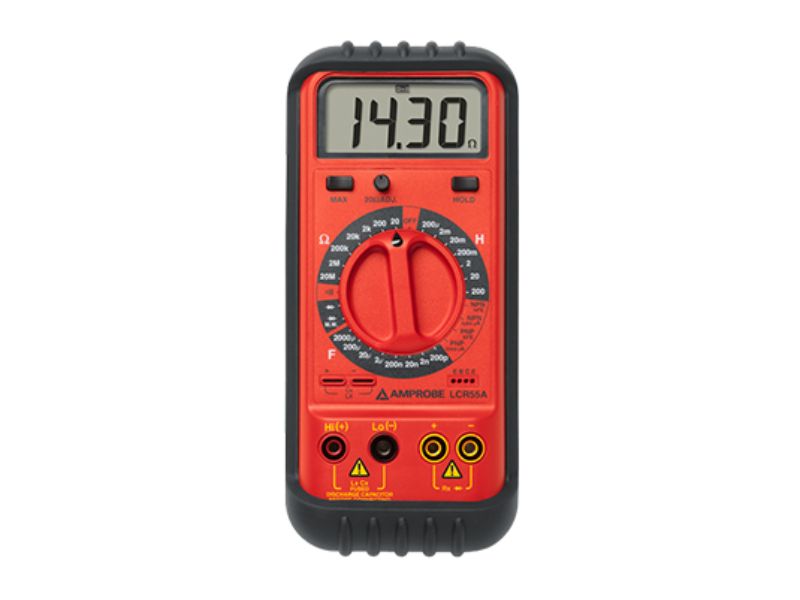

The ultimate electronic component verifier measures inductance, capacitance, resistance, transistors, diodes and microwave diodes.
Specification
Features
|
CR50A
|
LCR55A
|
Resistance
|
20 O, 200 O, 2 kO, 20 kO, 200 kO, 2 MO, 20 MO
|
20 O, 200 O, 2 kO, 20 kO, 2 MO, 20 MO
|
Capacitance
|
200 pF, 2000 pF, 2 µF, 20 µF, 200 µF, 2 mF, 20 mF
|
200 pF, 2000 pF, 2 µF, 20 µF, 200 µF, 2 mF
|
Inductance
|
–
|
200 µH, 2 mH, 200 mH, 200 H
|
Transistors
|
–
|
Hfe, Iceo (NPN, PNP)
|
Diodes
|
•
|
Std (3 V) microwave oven (8 V)
|
Continuity test
|
•
|
|
Specifications
|
|
Display
|
3-1/2 digit LCD, max reading of 1999
|
Display update rate
|
2.5 /sec, nominal
|
Power
|
Standard 9 V transistor battery
|
