- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- Auto-hold and auto-off features
- Lightweight, robust compact.
- Indicates measurement errors due to temperature or connection problems
- O-Ring sealed enclosure
- Battery powered
- IEC / EN 61010-1
Description

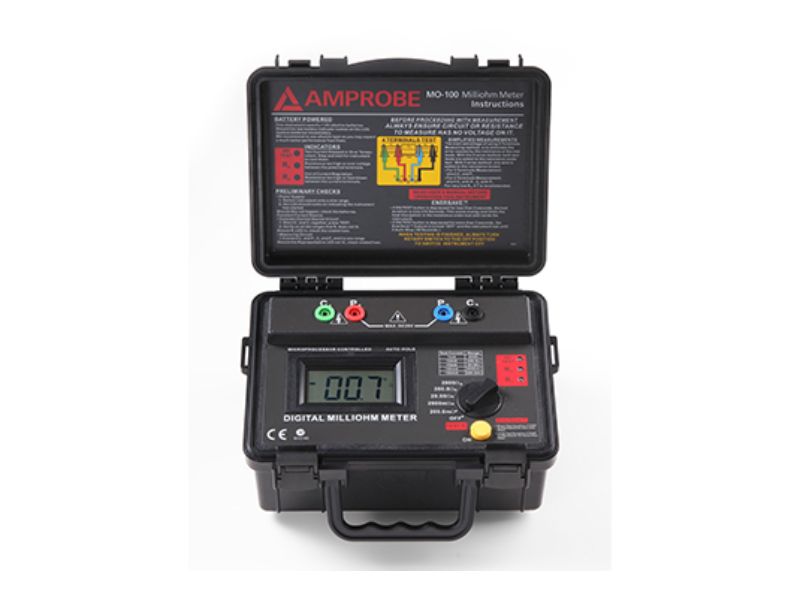

Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.
Specification
FEATURE
|
MO-100
|
Measuring range
|
0 → 200.0 mO in steps of 100 µO 0 → 2000 mO in steps of 1 mO 0 → 20.00 O in steps of 10 mO 0 → 200.0 O in steps of 100 mO 0 → 2000 O in steps of 1 O |
Test current
|
1 mA (2000 O range) 10 mA (20 O / 200 O range) 100 mA (200 mO / 2000 mO range) |
Specifications
|
|
Measuring ranges
|
0-200.0m ohms in steps of 100µohm
0-2000m ohms in steps of 1m ohm
0-20.00 ohms in steps of 10m ohm
0-200.0 ohms in steps of 100m ohm
0-2000 ohms in steps of 1 ohm
|
Accuracy
|
±0.5% of reading ±2 digits over the operating temperature range,
-15 °C to 55 °C (5 °F to 131 °F), with the supplied test leads
|
Test current
|
1mA =>2000 ohms range
10mA =>200/ 20 ohms range
100mA =>2000m / 200m ohm range
|
Test current accuracy
|
±0.1%
|
Protection fuses
|
Mains = 0.5A, HBC, 5 x 20mm, DIN
Current = 0.5A, HBC, 5 x 20mm, DIN
Voltage = 0.5A, HBC, 5 x 20mm, DIN
Maximum output
Voltage (C1-C2) 20V
|
