- Measures rotational and surface speed
- User selectable units for contact measurement: RPM, m/min, ft/min, yd/min
- Non-contact measurement in RPM
- Digital display
- Auto power off function
- Easy to select units and mode functions
Description

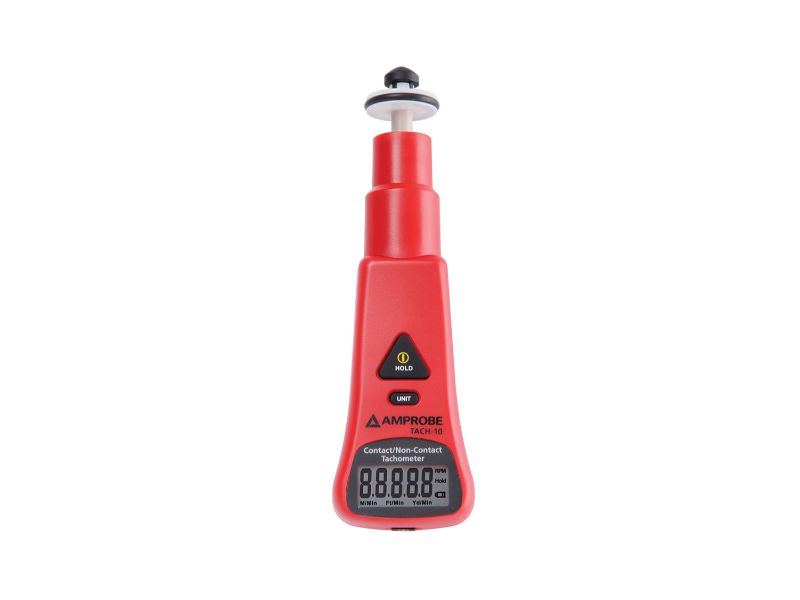

Universal, economical tachometer measuring rotational or surface speed either in contact or non-contact way. Widely used to measure rotational speed of motors, conveyer belts and other moving or rotating systems.
Specification
Feature
|
TACH-10
|
Rotation (non-contact)
|
10.0 rpm → 99999 rpm
|
Rotation (contact)
|
10.0 rpm → 19999 rpm
|
Surface speed (contact)
|
1.0000 m/min → 9999.9 m/min 3.0000 ft/min → 30,000 ft/min |
Specifications
|
|
LCD size:
|
15(H)x33(W)mm (0.6 x 1.3 IN)
|
Battery:
|
9V battery
|
Power consumption:
|
5uA(Idle), 18mA(measurement)
|
Time base:
|
4.0Mhz Quartz Crystal
|
Sampling time:
|
1 second (>60RPM), >1 second (10~60RPM)
|
Measure distance:
|
5~30cm / 2~13 IN (non-contact)
|
Included accessories:
|
Meter, 9V battery, cone funnel contact tips, reflective tape, users manual
|
