- K/J-type thermocouple selection
- Dual input
- MAX/MIN with elapsed time, AVG, REL, HOLD functions
- TIME setting, REL setting
- Warning beeper with Hi/Lo setting
- Resolution 0.1°C to 0.2°F
- User selectable °C/°F
Description

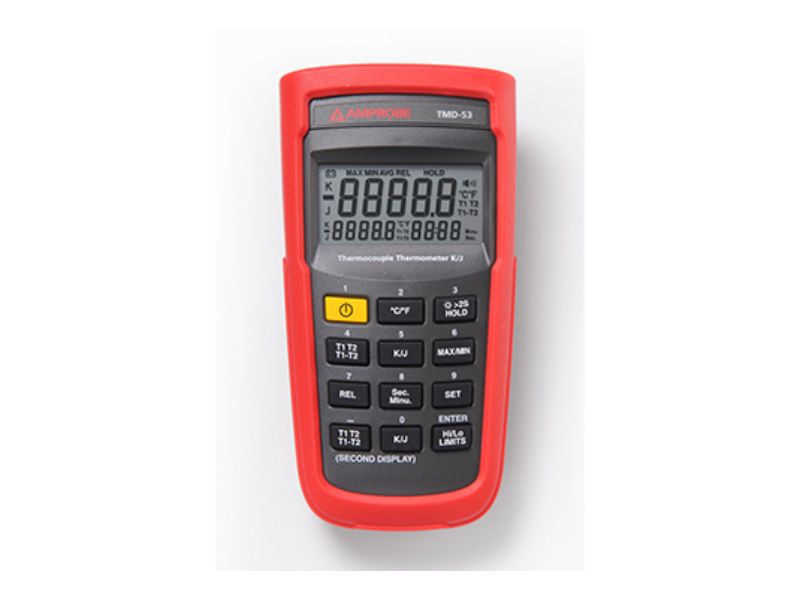

The Amprobe TMD-53 thermometer is a perfect choice for HVAC/R technicians and electricians, as well as research, industrial process, and quality control applications. The dual inputs allow easy super-heat and sub-cool temperature measurement as well as cut-out and in temperature measurements.
Specification
FEATURE
|
TMD-50
|
TMD-51
|
TMD-52
|
TMD-53
|
TMD-53W
|
TMD-55
|
TMD-56
|
TMD-55W
|
Thermocouple type
|
K
|
K, J
|
K, J, T, E
|
K, J
|
K, J
|
K, J, T, E, R, S, N
|
||
Basic accuracy
|
0.1 %
|
0.1 %
|
0.05 %
|
0.05 %
|
0.05 %
|
0.05 %
|
0.05 %
|
0.05 %
|
Number of parameters on the display
|
1
|
1
|
3
|
3
|
3
|
3
|
3
|
3
|
Real time clock – wireless beeper
with setting
|
–
|
–
|
–
|
•
|
•
|
•
|
•
|
•
|
Wireless transmission
|
–
|
–
|
–
|
–
|
•
|
–
|
–
|
•
|
Data capture
|
–
|
125 Samples
|
–
|
–
|
–
|
128 Samples
|
256 Samples
|
128 Samples
|
Data logger
|
–
|
–
|
–
|
–
|
–
|
1024 Points
|
16000 Points
|
1024 Points
|
PC interface
|
–
|
–
|
–
|
–
|
Wireless
|
–
|
USB
|
Wireless
|
Thermocouple Type
|
Temperature Range
|
K-TYPE
|
-328 °F → 2501 °F (-200 °C → 1372 °C)
|
J-TYPE
|
-346 °F → 2192 °F (-210 °C → 1200 °C)
|
T-TYPE
|
-328 °F → 752 °F (-200 °C → 400 °C)
|
E-TYPE
|
-346 °F → 1832 °F (-210 °C → 1000 °C)
|
R-TYPE
|
32 °F → 3212 °F (0 °C → 1767 °C)
|
S-TYPE
|
32 °F → 3212 °F (0 °C → 1767 °C)
|
N-TYPE
|
-58 °F → 2372 °F (-50 °C → 1300 °C)
|
