- Instrument for indoor air quality monitoring
- Wall mountable
- Digital display
- Air Temperature displays in Celsius or Fahrenheit
- Temperature / RH in one model
- Offers visible LEDs warnings to monitor IAQ condition
- Small size design with RS232 interface
- Memory points selection : 1000, 2000, 4000, 8000, 12000, 16000
Description

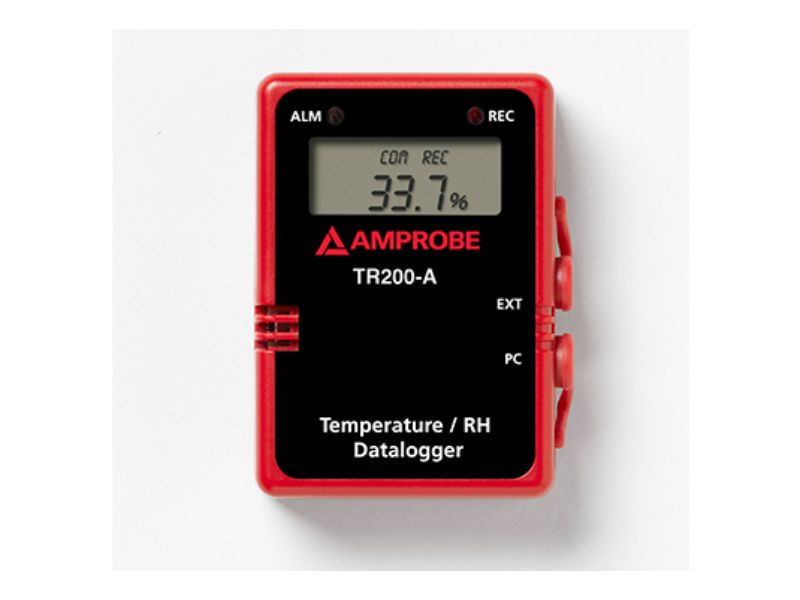

Amprobe’s Model TR200-A takes both temperature and relative humidity readings in one compact size unit. Use the included Amprobe software for recording measurements to your personal computer. Set up these parameters for recording: sample interval timing, start/stop, date and time, hi/lo alarm threshold, unit selection, and number of memory points.
Specification
Display
|
3¾ digit liquid crystal display (LCD) with a maximum reading of 1999
|
Sampling points
|
1K / 2K / 4K / 8K / 12K / 16K
|
Resolution
|
Temperature 0.1°C / 0.1°F RH Resolution 0.1% |
LED
|
Red: Hi, LO Alarm; Yellow: Record
|
Low battery indication
|
The “Batt” is displayed when the battery voltage drops below the operating level
|
Auto power off
|
Approx 10 minutes
|
Operating environment
|
14 °F to 140 °F, 0 to 100 %RH
|
Storage temperature
|
-40 °F to 185 °F, 0 to 100 %RH
|
Measurement ranges
|
Temperature Internal sensor -40 °F to 185 °F External probe -40 °F to 212 °F Relative Humidity 0.0 to 99.9% |
Accuracy
|
Temperature ±1°F (-4°F to 122°F); ±1.2°F for all others Relative Humidity ±3% at 77°F; 5% for all others |
Sensor
|
Silicon photodiode and filter
|
Altitude
|
2000 m, indoor operation
|
Power supply
|
1 X 3V coin battery IEC-CR2032
|
Battery life
|
2-years with 7200-sec sampling rate
|
Dimensions
|
2.95 x 2.16 x 0.9 in
|
Weight
|
0.044 lb
|
IP Rating
|
IP65
|
Agency Approvals & Certifications
|
|
