One of the industry’s smallest current sensors
Description
Key Feature
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 20 A AC/DC
Model No. (Order Code)

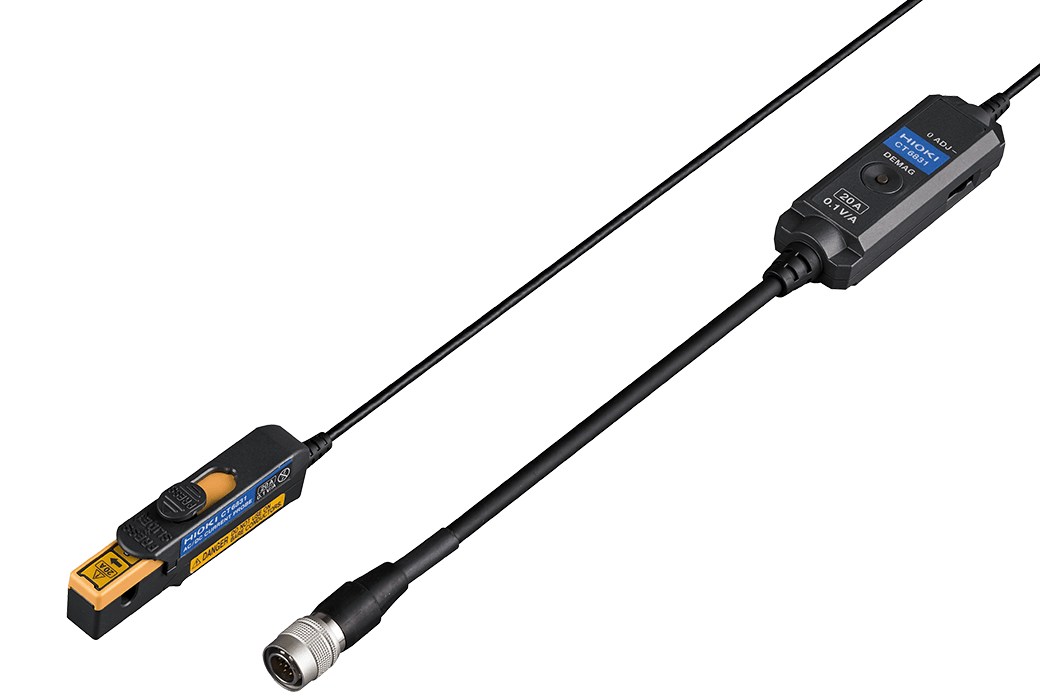

| CT6831 | 20 A AC/DC, φ 5 mm |
|---|
Specification
Accuracy guaranteed: 1 year
| Rated measurement current | 20 A AC/DC |
|---|---|
| Max. allowable input | 30 A rms continuous (±43 Ap) |
| Bandwidth | DC to 100 kHz |
| Basic accuracy | DC± 0.3％ rdg. ±0.1％ f.s. |
| Core diameter | φ 5 mm or less |
| Output connectors | HIOKI ME15W |
| Memory function | Instruments with a memory function can load the sensor information of the device Compatible model: PW8001 |
| Operating temperature range | Sensor: -40°C to 85°C, 80% RH or less (non-condensing) Multiplexer: -25°C to 50°C, 80% RH or less (non-condensing) |
| Dimensions | Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable) Multiplexer: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Weight | 160 g |
| Output cable length | 4 m (between sensor and multiplexer), 0.2 m (between multiplexer and output connector) |
| Included accessories | Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
