Features
• Range of application of instrument and probe: -10…60 °C / 0…100 %rh (non-condensing)
• Accuracy at 23°C: ±2 %RH, ±0.3 °K
Description

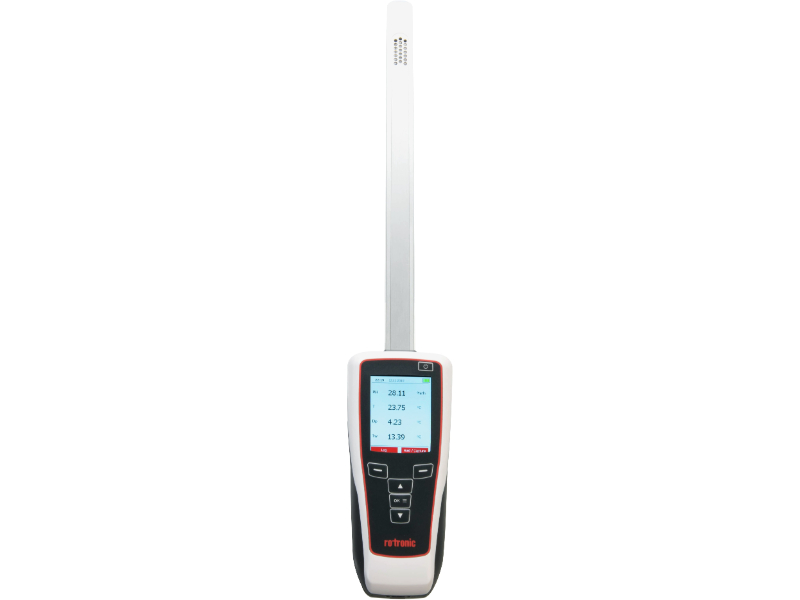

The HP-GTS from Rotronic is a tried-and-tested instrument for measurement of equilibrium relative humidity and temperature in stacks of paper and cardboard.
Applications
Humidity measurements in stacks of paper, cardboard and textiles for paper and textile technicians and printers
Compatible with
• HW4 software > V3.9 (free download at rotronic.com)
Delivery package
• HygroPalm HP-GTS
• Soft case
• Micro-USB cable (computer connection and battery charging)
Specification
| ACCURACY AT 23 ±5 °C | ±2.0 %rh / ±0.3 K |
|---|---|
| DIMENSIONS | 408 x 63 x 30 mm |
| FUNCTIONS | Spot measurements Time programmable interval logging MIN / MAX / AVG |
| POWER CONSUMPTION | Integrated battery: • Rechargeable lithium polymer battery • 3.7 V • 1000 mAh • 48 h with screen off, logging every 30 s • 10 h with screen always on |
| HUMIDITY SENSOR | Hygromer IN-1 |
| DISPLAY REFRESH RATE | 1 s (typical) |
| MEMORY SIZE | 8 x 8000 data points |
| LOGGING INTERVAL | 1 s…24 h |
| PC INTERFACES | Micro-USB port, HW4 compatible V |
| HOUSING | ABS, TPR |
| IP PROTECTION RATING | IP65 |
| PROBE MATERIAL | Aluminium |
| DIMENSIONS | 408 x 63 x 30 mm |
| WEIGHT | 225g |
