Features
- Stores 44,000 pairs of measured values
- Fail-safe, thanks to internal battery
- 3 years battery lifetime
- Wireless Interface
- Compatible with RMS Gateway, RMS server software and RMS Cloud
- Conforms to FDA 21 CFR Part 11 / GAMP5
Description

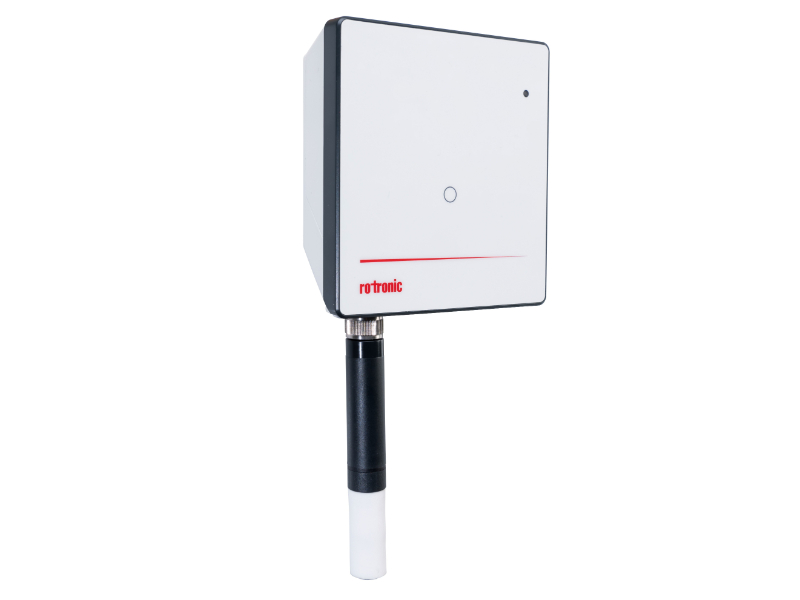

The data logger is the flexible component between the probe and the database in the ROTRONIC Monitoring System. It stores 44,000 pairs of measured values from the exchangeable HygroClip probe, and transmits them to the RMS database via LAN or wireless link. It guarantees absolute data protection, even if power supply and communications should temporarily break down.
Specification
| RANGE OF APPLICATION | -40…70 °C / 0…100 %RH |
|---|---|
| POWER SUPPLY | 24 VDC / battery: 2 x AA, EVE-ER14505 / PoE: 802.3af-2003, Class 1 |
| BATTERY LIFETIME | 3 years (at 23 °C and interval of 1 minute) |
| MEASURED VALUE MEMORY | 44,000 pairs of measurement values |
| CURRENT CONSUMPTION | 50 mA |
| MEASUREMENT INTERVAL | 10 s to 15 min |
| EXPLOITATION SOFTWARE | RMS-Config / RMS Server Software / RMS Cloud |
| SOFTWARE UPDATE | Via RMS-Config / RMS Server Software / RMS Cloud |
| COMMUNICATION INTERFACES | 868 MHz |
| HOUSING | ABS |
| IP PROTECTION RATING | IP65 |
| REVERSE VOLTAGE PROTECTION | Protection diode to V + |
| FDA/GAMP COMPATIBILITY | FDA 21 CFR Part 11 and GAMP compatible |
| DIMENSIONS | 105 x 113 x 38 mm |
| WEIGHT | 200 g |
