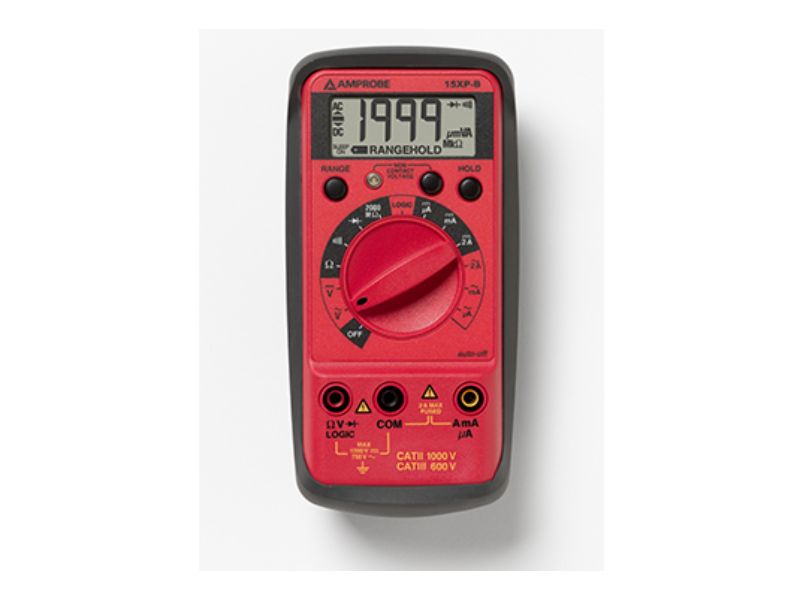

Amprobe 15XP-B Digital Multimeter VolTect™, Non-Contact Voltage Detection

Designed for electronics engineers, technicians and field service
Autoranging display for faster measurements
TTL logic test for digital circuits
Integrated tilt stand for easy bench use
Diode test for component level troubleshooting
Data hold freezes display to “hold” measurement reading
600 V AC / 600 V DC—highest voltage rating in this size of meter
Special 2000 MΩ measurement range

SKU: 3534088 Category: Discontinued

Description

The Amprobe 15XP-B is the right choice for electronics engineers and field service technicians, featuring TTL logic test for digital circuits, diode test for component level troubleshooting, a special 2000 MΩ measurement range, and an integrated tilt stand for convenience on the bench.

Specification

FEATURE	15XP-B
DC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
AC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
Current AC/DC	200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A
Resistance	200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ, 2000 MΩ
Continuity beeper	•
VolTect™ Non-Contact Voltage Detection	70 V AC → 600 V AC (50 Hz → 60 Hz)
Capacitance	–
Frequency	–
Temperature	–
Logic test	TTL, 20 MHz
Battery test	–

Specifications
Display	3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
Polarity	Automatic, positive implied, negative polarity indication
Over-range	(OL) or (-OL) is displayed
Zero	Automatic
Low battery indication	The + is displayed when the battery voltage drops below the operating level
Auto power off	Approx. 10 minutes
Measurement rate	2 times per second, nominal
Operating environment	0 °C to 50 °C at <70 % R.H.
Accuracy	Stated accuracy at 23 °C ± 5 °C, <75 % relative humidity
Power	Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
DC Volt ranges	200 mV, 2 V, 20 V, 200 V, 600 V Accuracy: ± (0.5 % rdg + 1 dgt)
AC Volts (45 Hz to 500 Hz) ranges	200 mV 2 V, 20 V, 200 V, 600 V Accuracy: ± (1.5 % rdg + 5 dgts)
DC Current ranges	200 µA, 2000 µA, 20 mA, 200 mA, Accuracy: ± (1.0 % rdg + 2 dgt) 2 A, Accuracy ± (2.0 % rdg + 3 dgts)
AC Current (45 Hz to 500 Hz) ranges	200 µA, 2000 µA, 20 mA, 200 mA, Accuracy: ± (1.5 % rdg + 5 dgts) 2 A, Accuracy ± (2.5 % rdg + 5 dgts)
Resistance	200 Ω , 2 kΩ , 20 kΩ , 200 kΩ , 2 MΩ ± (1.0 % rdg + 4 dgts)
Resistance	2000 MO ± {5.0 % (rdg -10 dgts) +20 dgt}
Continuity audible indication	Less than 25 Ω
Diode test current	1.2 mA (approximate) ±(1.5 % rdg + 3 dgts)
Logic test	TTL
Non-contact voltage indicator	Sense voltage 70 V to 600 V AC (50 Hz to 60 Hz) beeper chirps and big bright red LED comes on, works on all ranges
