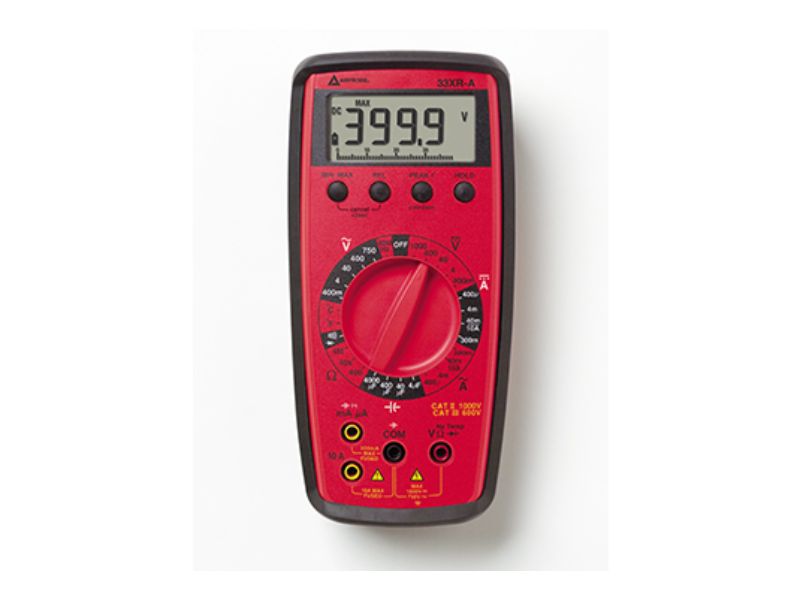

Amprobe 33XR-A Digital Multimeter with Temperature – Firmtest Electronics (M) Malaysia

SKU: 2727788 Category: Discontinued

Description

The Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance for field service technicians.

FEATURE	33XR-A
DC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
DC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
AC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
Resistance	400.0 O, 40.00 kO, 4.000 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	–
Capacitance	4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
Frequency	4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
Temperature	1832 °F (1000 °C)
Duty cycle	–
Logic test	–
Inductance	–
dBm	–

Specifications
DC Voltage ranges	400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage accuracy	All ranges: ± (0.7 % rdg + 1 dgt)
DC Voltage resolution	100 µV
DC Voltage input impedance	10 MO
AC Voltage (45 Hz to 500 Hz) ranges	400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 500 Hz) accuracy	4 V Range, 200 Hz to 500 Hz: ± (2.0 % rdg + 4 dgts) All other ranges: ± (1.5 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) resolution	100 µV
AC Voltage (45 Hz to 500 Hz) input impedance	10 MO
DC Current ranges	400 µA, 4 mA, 40 mA, 300 mA, 10 A
DC Current accuracy	400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt) 10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution	0.1 µA
DC Current voltage burden	400 µA range: 1 mV/µA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA 300 mA range: 4 mV/1 mA, 10 A range: 100 mV/1 A
AC Current (45 Hz to 500 Hz) ranges	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 500 Hz) accuracy	400 µA to 300 mA ranges: ± (1.5 % rdg + 4 dgts) 10 A range: ± (2.5 % rdg + 4 dgts)
AC Current resolution	0.1 µA
AC Current voltage burden	See DC Current
Resistance ranges	400 O 40 kO 4 MO
Resistance accuracy	400 Oand 40 kO ranges: ± (1.0 % rdg + 4 dgts) 4 MO range: ± (1.2 % rdg + 4 dgts)
Resistance resolution	100 mO
