- Temperature measurement capability to 1000 °C/1832 °F (type-K thermocouple included)
- 600 V AC/600 V DC – highest voltage rating in this class of meter
- Capacitance for motor run/start test
- 1 μA resolution for flame sensor testing
- Frequency to 1 MHz
- Resistance to 40 MΩ
- Data hold freezes display
- Magne-Grip™ Holster
- VolTect™ non-contact voltage detector
- Low battery indication
Description

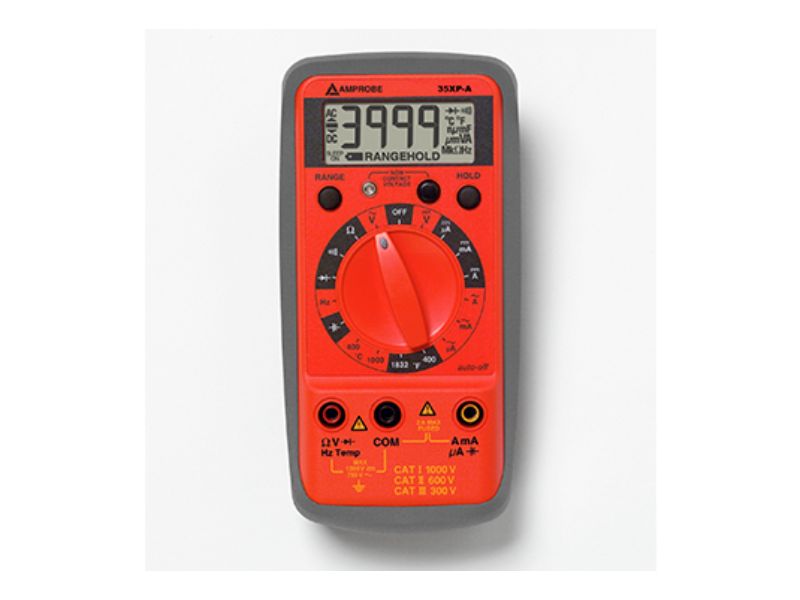

The compact 35XP-A Digital Multimeter offers all the right features for HVAC and plant maintenance. It measures temperature, plus capacitance for motor run/start test, and offers 0.1 µA resolution for flame sensor testing.
Specification
FEATURE
|
35XP-A
|
DC Voltage
|
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
|
AC Voltage
|
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
|
Current AC/DC
|
400.0 µA, 4.000 µA, 40.00 mA, 400.0 mA, 2 A
|
Resistance
|
40.00 kΩ, 400.0 kΩ, 4.000 MΩ. 40.00 MΩ
|
Continuity beeper
|
✓
|
VolTect™ Non-Contact Voltage Detection
|
70 V AC → 600 V AC (50 Hz → 60 Hz)
|
Capacitance
|
4.000 nF, 40.00 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4.000 mF
|
Frequency
|
4,000 kHz, 40.00 kHz, 400,0 kHz, 1 MHz
|
Temperature
|
-4 °F → 1832 °F (-20 °C → 1000 °C)
|
Logic test
|
–
|
Battery test
|
–
|
Specifications
|
|
DC Volts range
|
400 mV, 4 V, 40 V, 400 V, 600 V
Accuracy: ± (0.5 % rdg + 1 dgts)
|
AC Volts (45 Hz to 500 Hz) range
|
400 mV (45 Hz to 100 Hz)
4 V, 40 V, 400 V, 600 V (45 Hz to 500Hz)
Accuracy: ± (1.5 % rdg + 5 dgts)
|
Voltage resolution
|
100 µV
|
Input impedance
|
400 mV: >100 MΩ ; 4 V: 10 MΩ ; 40 V to 600 V: 9.1 MΩ
|
Overload protection
|
600 V DC or 60 V AC RMS
|
DC Current range
|
400 µA, 4000 µA, 40 mA, 400 mA ± (1.0 % rdg + 2 dgt)
|
DC Current range
|
2 A ± (2.0 % rdg + 3 dgts)
|
AC Current (45 Hz to 500 Hz) range
|
400 µA, 4000 µA, 40 mA, 400 mA ± (1.5 % rdg + 5 dgts)
|
AC Current (45 Hz to 500 Hz) range
|
2 A ± (2.5 % rdg + 5 dgts)
|
Current resolution
|
0.1 µA
|
Input protection
|
2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input
|
Burden voltage
|
500 mV max. (2 V max. on 4 mA, 400 mA ranges)
|
Resistance
|
400 Ω , 4 kΩ , 40 kΩ , 400 kΩ , 4 MΩ ± (1.0 % rdg + 4 dgts)
|
Resistance
|
40 MΩ ± (2.0 % rdg + 5 dgts)
|
Resistance resolution
|
100 mΩ
|
Open circuit voltage
|
-0.45 V DC typical, (-1.2 V DC on 400 Ω range)
|
Overload protection
|
600 V DC or 600 V AC RMS
|
