- Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
- Thin jaws, only 10mm (0.4″) thick make it easier to maneuver between tightly packed conductors
- Measures frequency, resistance, and capacitance
- Features continuity beeper to quickly find opens and shorts
- Accommodates conductors up to 1.0″ (25mm) in diameter
- Auto ranging saves time by instantly selecting correct range
- Auto power off to conserve battery life
- Rubber over-molded case absorbs shock

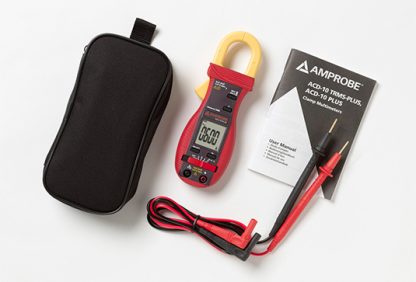

- Includes test leads, battery (installed), soft carrying pouch, and users manual
Description

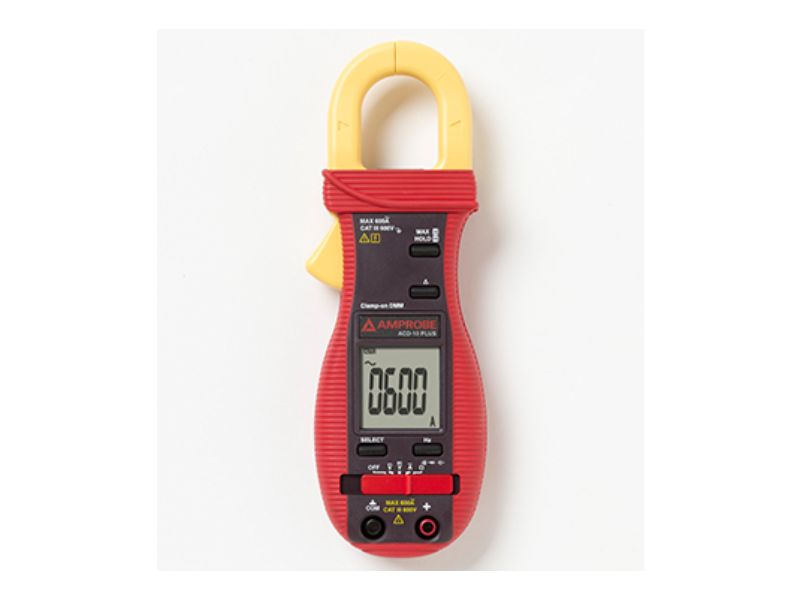

The Amprobe ACD-10 PLUS clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4″/10mm thick) allowing access to tight measurement areas and still handles conductors up to 1.0 (25mm).
It combines the convenience and flexibility of an AC/DC current clamp meter with the most frequently used digital multimeter functions, including ac/dc current and voltage, capacitance, and frequency.
Specification
FEATURE |
ACD-10 PLUS |
ACD-10 TRMS-PLUS |
True-rms |
– |
• |
AC Voltage |
4.000 V, 40.00 V, 400.0 V, 600 V |
|
DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
|
AC Current |
40.00 A, 400.0 A, 600 A |
|
Resistance |
400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ |
|
Capacitance |
500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF |
|
Frequency |
40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads |
|
Temperature |
– |
– |
Dual displays |
– |
– |
Micro Amps |
– |
– |
Accommodates conductors |
up to 1.0″ (25 mm) in diameter |
|
Specifications |
|
Display: |
3-3/4 digits 4000 counts LCD display |
Update rate: |
3 per second nominal |
Polarity: |
Automatic |
Operating temperature: |
°C to 40 °C; < 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C |
Altitude: |
Operating below 2000m; Indoor use |
Storage temperature: |
-20 °C to 60 °C, < 80% RH (with battery removed) |
Temperature coefficient: |
nominal 0.15 x (specified accuracy)/°C @(0 °C ~ 18 °C or 28 °C ~ 40 °C) |
Low battery: |
Below approx. 2.4V |
Power supply: |
3V coin battery IEC-CR2032 |
Power consumption: |
2.8 mA typical except that 3.3 mA typical for ACA function |
APO timing: |
Idle for 30 minutes |
APO consumption: |
5 µA typical |
Jaw opening conductor diameter: |
max 26 mm |
Special features: |
30ms Max Hold; Data Hold; Relative Zero mode |
