- 8 functions/11 ranges
- Data and AC peak hold
- DC auto zero
- Carrying case included
- 33⁄4 digit, LCD, max reading of 3999
- Maximum jaw opening 1.57˝ (40 mm)
- Autoranging for frequency measurement
- Low battery indication
- Auto-power off after 30 minutes
- Manual function and range selection with rotary selector
Description

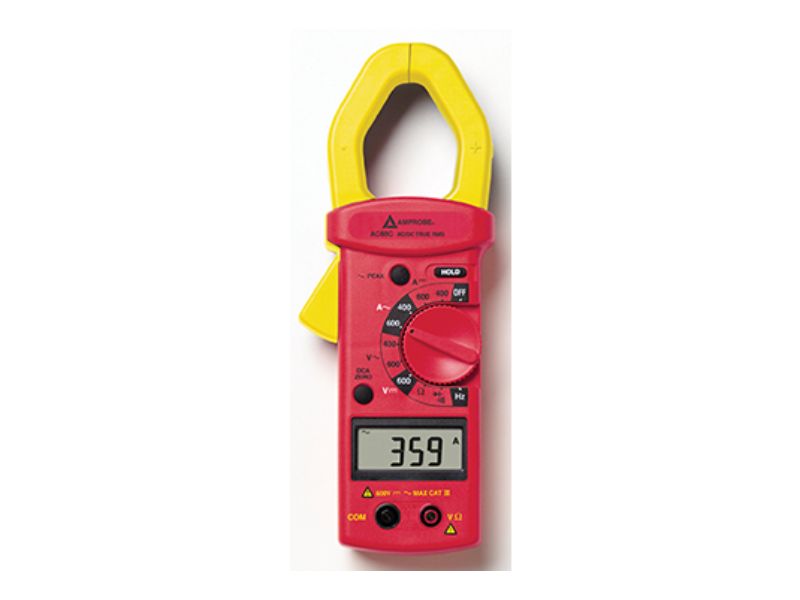

Amprobe AC68C TRMS 600 A Clamp Meter measures non-linear load current with true-rms readings. This top-of-the-line professional clamp DMM is CAT II 600 V, CAT III 300 V rated.
Specification
FEATURE
|
AC68C
|
True-rms
|
•
|
AC Voltage
|
600 V
|
DC Voltage
|
400.00 V, 600 V
|
AC Current
|
400.00 A, 600 A
|
DC Current
|
400.00 A, 600 A
|
Micro Amps
|
–
|
Resistance
|
4.000 kO
|
Continuity
|
•
|
Capacitance
|
–
|
Frequency
|
4 kHz, 20 kHz
|
Temperature
|
–
|
Accommodates conductors
|
up to 1.3″ (35 mm) in diameter
|
Specifications
|
|
DC Voltage ranges
|
Range: 600 V
Accuracy: ± (0.75 % rdg + 2 dgts)
Resolution: 1 V in 600 V range
Input impedance: 10 MO
|
AC Voltage (40-450 Hz) range
|
Range: 400 V, 600 V
Accuracy: ± (1.2 % rdg + 5 dgts)
Resolution: 0.1 V in 400 V range
Input impedance: 10 MO
|
DC Current
|
Range: 400 A, 600 A
Accuracy: ± (2 % rdg + 5 dgts)
Resolution: 0.1 A in 400 A range
|
AC Current (40-450 Hz)
|
Range: 400 A, 600 A
Accuracy: ± (2 % rdg + 5 dgts)
Resolution: 0.1 A in 400 A range
|
Frequency (Hz), current and voltage
|
Range: 4 kHz, 20 kHz
Accuracy: ± (0.5 % rdg + 5 dgts)
Resolution: 1 Hz in 4 kHz range
Sensitivity: 5 A/1 V in 4 kHz range, 5 A/5 V in 20 kHz range
|
