- Measure:
-
- Earth and differential leakage currents
- Leakage currents through the earth (PE) conductor
- Appliance current consumption without interruptions to the circuit
-
- Trace the source of earth leakage currents
- Identify intermittent GFCI trips without switching equipment off
- Check a system for an electrical break of insulation where current is flowing to the ground
- For use where industrial leakage current testing is required
Description

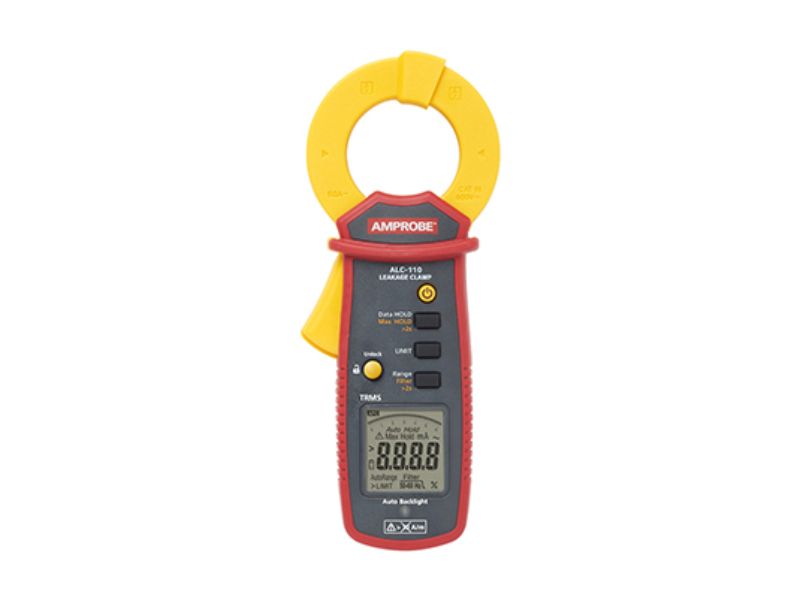

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.
Specification
Features
|
|
Low frequency magnetic fields
|
≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz
|
Measurement category
|
CAT III 600 V
|
True-rms
|
Yes
|
AC frequency
|
15 Hz to 1 kHz
|
Low pass filter
|
50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter
|
Limit judgement
|
0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
|
Jaw opening
|
1.2 in (30 mm) max.
|
Jaw locking
|
Yes
|
Backlight function
|
Yes
|
Overload protection
|
60 A
|
Auto power off
|
Idle 20 minutes
|
Auto ranging
|
Yes
|
Max hold
|
Yes
|
Data hold
|
Yes
|
Complies with IEC/EN 61557-13
|
Yes
|
Built according IEC/EN 61010-2-032
|
Yes
|
General Specifications
|
|
Display
|
Digital: 6000 counts, updates 5/sec
|
Range
|
Auto ranging
|
Over range indication
|
OL or -OL
|
Operating temperature
|
32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH
86 °F to 104 °F (30 °C to 40 °C), ≤ 75% RH
104 °F to 122 °F (40 °C to 50 °C), ≤ 45% RH
|
Operating altitude
|
≤ 2000 m
|
Storage temperature
|
-4 °F to 140 °F (-20 °C to 60 °C)
|
Pollution degree
|
2
|
Temperature coefficient
|
0.1 x (specified accuracy) / °C (<21 °C, <25 °C)
|
Vibration requirement
|
acc. IEC 61557-1 clause 4.10
|
Drop proof
|
4 ft (1.2 m)
|
Battery
|
2 x batteries 1.5 V IEC LR03 AAA
|
Battery life
|
60 hours typical
|
Safety compliance
|
IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-032, IEC/EN 61557-13
|
EMC compliance
|
IEC/EN 61326-1, IEC/EN 61326-2-2
|
Dimensions (H x W x L)
|
8.7 x 3.5 x 1.8 in (221 x 89 x 48 mm)
|
Weight
|
0.9 lb (410 g) with batteries installed
|
