- Large, easy to read LCD display
- Auto and manual ranging
- Relative zero mode
- Auto power off
- Data hold
- MAX capture function for inrush current measurements (30 mS response)
- Diode test
- Audible continuity
- Accommodates conductors up to 2.0″ (50 mm) in diameter
- “Third hand” – test probe holder
- Rubber over-molded case with built-in probes storage
Description

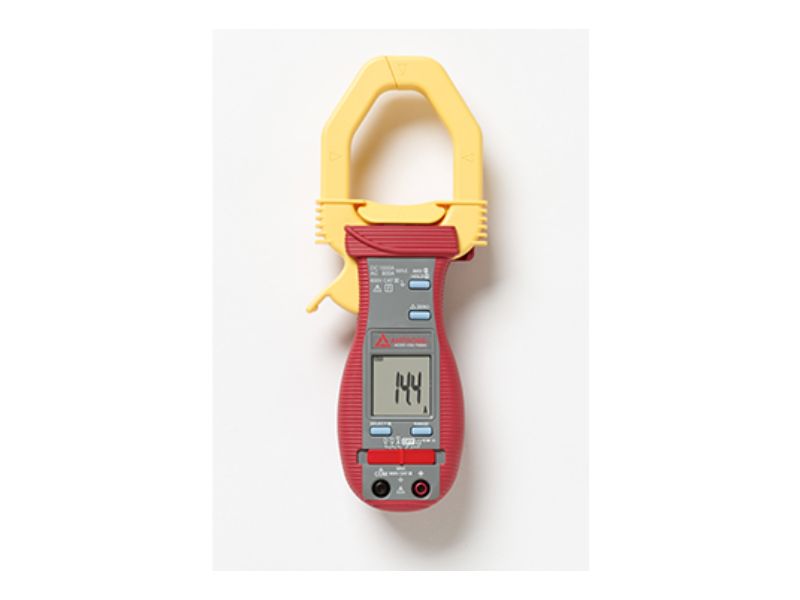

Where accuracy, quality and technology meet. The ACDC-100 offers superior AC/DC measurement capabilities, highest product quality and enhanced ergonomics with red, rubber, Ribs™ design.
Specification
FEATURE
|
ACDC-100
|
ACDC-100 TRMS
|
True-rms
|
–
|
•
|
AC Current
|
400.0 A, 800 A
|
|
DC Current
|
400.0 A, 1000 A
|
|
Voltage AC/DC
|
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
|
|
Resistance
|
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
|
|
Continuity
|
•
|
|
Capacitance
|
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
|
|
Accommodates conductors
|
up to 2.0 (50 mm) in diameter
|
|
Specifications
|
|
True-rms
|
N/A
|
DC Current
|
400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800 A
|
AC Current
|
400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600 A, 40 to 100 Hz
|
AC Voltage
|
400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4 V to 400V ranges , 50 to 500 Hz
|
DC Voltage
|
400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4 V to 400 V ranges
|
Resistance
|
400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges
|
Capacitance
|
500.0 nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)
|
