- Measures AC Current to 600 A and AC/DC Voltage to 600 V
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Capacitance measurement, continuity beeper and diode test
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Offers data hold and relative zero for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- Accommodates conductors up to 1.18 in (30 mm)
- CAT III 600 V safety rated
Description

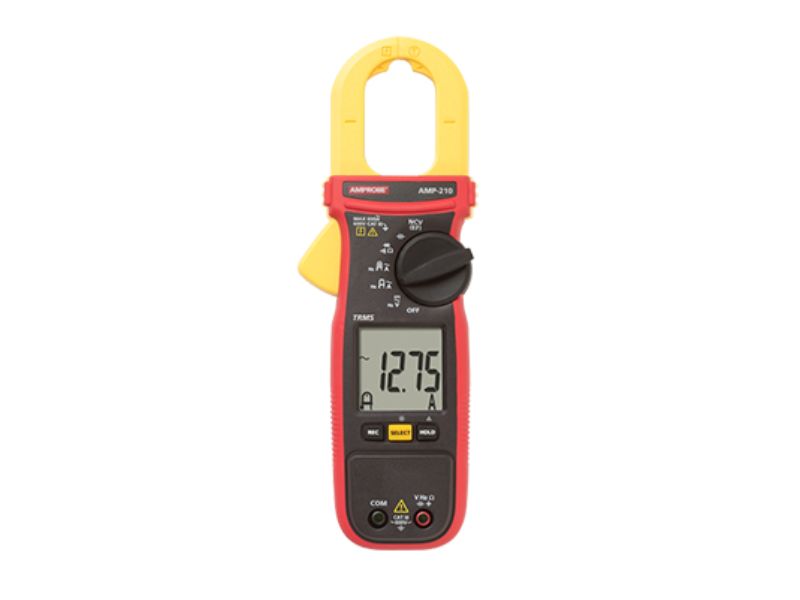

With a full range of AC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-210 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today’s complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).
Specification
FEATURE |
AMP-210 |
AMP-220 |
AMP-310 |
AMP-320 |
AMP-330 |
|
AC voltage (True-rms) |
Range: |
0 to 600.0 V |
0 to 1000.0 V |
|||
Accuracy: |
±1.0% + 5LSD (50 to 60 Hz) |
±0.8% + 5LSD (50 to 60 Hz) |
||||
DC voltage |
Range: |
0 to 600.0 V |
||||
Accuracy: |
±1.0% + 5LSD |
|||||
AC+DC voltage |
Range: |
– |
0 to 600.0 V |
– |
0 to 600.0 V |
0 to 1000.0 V |
Accuracy: |
– |
±1.2% + 7LSD (50 to 60 Hz) |
– |
±1.2% + 7LSD (50 to 60 Hz) |
±1.0% + 7LSD (50 to 60 Hz) ±1.8% + 7LSD (DC 40 to 200 Hz) ±1.2% + 7LSD (200 to 400 Hz) |
|
AC current |
Range: |
0 to 600.0 A |
||||
Accuracy: |
±1.8% + 5LSD (50 to 60 Hz) ±2.0% + 5LSD (100 to 400 Hz) |
|||||
DC current |
Range: |
– |
0 to 600.0 A |
– |
0 to 600.0 A |
0 to 1000.0 A |
Accuracy: |
– |
±2.0% + 5LSD (DC 50 to 100 Hz) |
– |
±2.0% + 5LSD (DC 50 to 100 Hz) |
±1.8% + 5LSD (DC 50 to 100 Hz) |
|
AC+DC current |
Range: |
– |
0 to 600.0 A |
– |
0 to 600.0 A |
0 to 1000.0 A |
Accuracy: |
– |
±2.2% + 7LSD (DC 50 to 100 Hz) ±2.7% + 7LSD (100 to 400 Hz) |
– |
±2.2% + 7LSD (DC 50 to 100 Hz) ±2.7% + 7LSD (100 to 400 Hz) |
±2.2% + 7LSD (40 to 100 Hz) ±2.5% + 7LSD (100 to 400 Hz) |
|
Precise low current AC |
Range: |
0 to 60.00 A |
||||
Accuracy: |
±1.5% + 5LSD (50 to 60 Hz) |
±1.5% + 5LSD (50 to 60 Hz) ±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz) ±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz) ±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz) |
||||
Precise low current DC |
Range: |
– |
0 to 60.0 A |
– |
0 to 60.0 A |
0 to 60.00 A |
Accuracy: |
– |
±2.0% + 5LSD |
– |
±2.0% + 5LSD |
±1.5% + 5LSD (0.00 to 20.00 A) ±3.0% + 5LSD (>20.00 to 60.00 A) |
|
Micro amps |
Range: |
– |
– |
0 to 2000 µA |
||
Accuracy: |
– |
– |
±1.0% + 5LSD |
|||
Frequency |
Range: |
5.00 to 999.9 Hz |
||||
Accuracy: |
±1.0% + 5LSD (600 V range) |
|||||
Range: |
50.0 to 400.0 Hz |
|||||
Accuracy: |
±2.0% + 4LSD (600 A range) |
|||||
Resistance |
Range: |
0.0 to 60.00 kΩ |
||||
Accuracy: |
±1.0% + 5LSD |
|||||
Capacitance |
Range: |
0.0 to 2500 µF |
||||
Accuracy: |
±2.0% + 4LSD |
|||||
Continuity beeper |
ON ≤ 10 Ω |
|||||
Off > 250 Ω |
||||||
Temperature* (Type K thermocouple) |
– |
– |
-40.0 to 752 °F -40.0 to 400 °C |
|||
– |
– |
±1.0% + 3.0 °F (-40.0 to 14.0 °F) ±1.0% + 1.5 °F (>40.0 to 99.9 °F) ±1.0% + 2.0 °F (100 to 752 °F) ±1.0% + 1.5 °C (-40.0 to 10.0 °C) ±1.0% + 0.8 °C (>-10.0 to 99.9 °C) ±1.0% + 1.0 °C (100 to 400 °C) |
||||
Non-contact voltage |
10 V to 1000 V AC (50 to 60 Hz) |
|||||
Phase rotation indication |
– |
– |
Rotation-R for main supply Rotation-M for motors |
|||
Diode test |
• |
• |
• |
• |
• |
|
Jaw opening |
1.18 in (30 mm) |
1.37 in (35 mm) |
1.18 in (30 mm) |
1.37 in (35 mm) |
2.0 in (51 mm) |
|
Safty rating |
CAT III 600 V |
CAT IV 600V CAT III 1000 V |
||||
Special Features |
||||||
In-rush current |
– |
• |
• |
• |
• |
|
Peak hold (Crest) |
– |
– |
– |
– |
• |
|
Relative zero |
• |
• |
• |
• |
• |
|
Max/Min/Avg |
• |
• |
• |
• |
• |
|
Data hold |
• |
• |
• |
• |
• |
|
Backlight |
• |
• |
• |
• |
• |
|
Auto power off |
• |
• |
• |
• |
• |
|
Work light |
– |
– |
– |
– |
• |
|
*Error does not include Type-K thermocouple errors
