- True-rms
- Measures AC current to 800A and DC current to 1000A, AC/DC voltage to 600V, plus capacitance, and resistance
- Continuity beeper quickly identifies shorts and opens
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Data hold freezes the reading on the display for further analysis
- Diode test quickly finds voltage drops
- MAX capture function measures inrush current (30 mS response)
- Combines user friendly features such as a large, easy to read backlit digital display, auto power-off to conserve battery life, and a “third hand” test probe holder
- Rubber over-molded case absorbs shock and provides built-in probe storage
- Accommodates conductors up to 2.0″ (50 mm) in diameter
- CAT III 600 V rated
Description

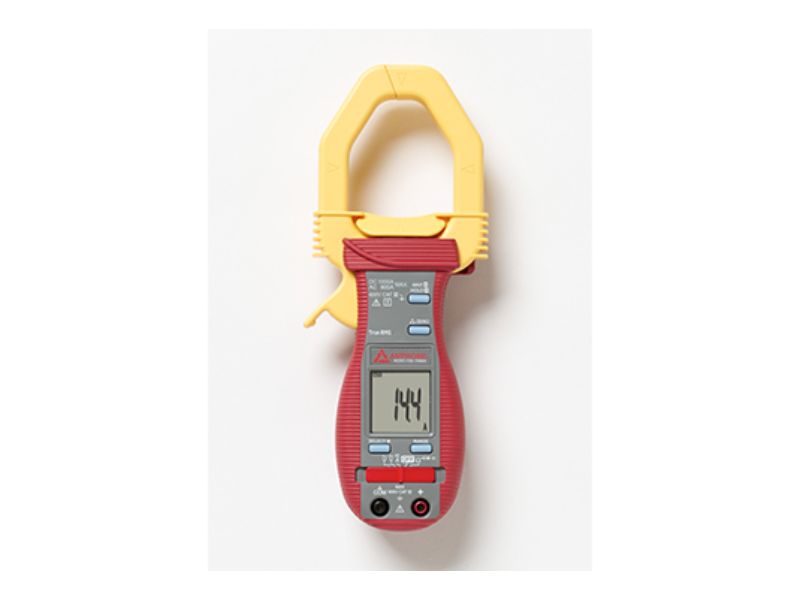

The ACDC-100 TRMS 1000 A digital clamp meter offers superior accuracy, quality and reliability with all the basic measurement capabilities technicians need in an AC/DC current clamp meter. Use it to measure AC current to 800 A, DC current to 1000 A, and AC/DC voltage from 400.0 mV to 600 V.
Its large jaws accommodate conductors up to 2″ (50 mm) in diameter and its enhanced ergonomic design make it a great choice for a clamp with professional digital multimeter capabilities.
Specification
FEATURE
|
ACDC-100
|
ACDC-100 TRMS
|
True-rms
|
–
|
•
|
AC Current
|
400.0 A, 800 A
|
|
DC Current
|
400.0 A, 1000 A
|
|
Voltage AC/DC
|
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
|
|
Resistance
|
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
|
|
Continuity
|
•
|
|
Capacitance
|
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
|
|
Accommodates conductors
|
up to 2.0″ (50 mm) in diameter
|
|
Specifications
|
|
True-rms
|
Yes
|
DC Current
|
400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800 A
|
AC Current
|
400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600 A, 40 to 100 Hz
|
AC Voltage
|
400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4 V to 400 V ranges , 50 to 500 Hz
|
DC Voltage
|
400.0 mV 4.000 / 40.00 / 400.0 / 600 V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4 V to 400 V ranges
|
Resistance
|
400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges
|
Capacitance
|
500.0 nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)
|
