- Test pin configuration for:
- 10/100 base -T cable
- 10 base-2 cable
- RJ45 modular cables
- AT T 258A cable
- EIA/TIA 568A/568B cables
- Token ring cable
- Verify the cable wiring for continuity, opens, shorts or incorrect wiring
- Test installed cable on wall plate or the patch panels by using the remote termination module
- Perform loopback test or remote test
- Buzzer sound warning for error condition in cable
- Two sets of LED lights for source and test indication
- Maximum line length: > 300 meters
- Connector types: RJ45, BNC
Description

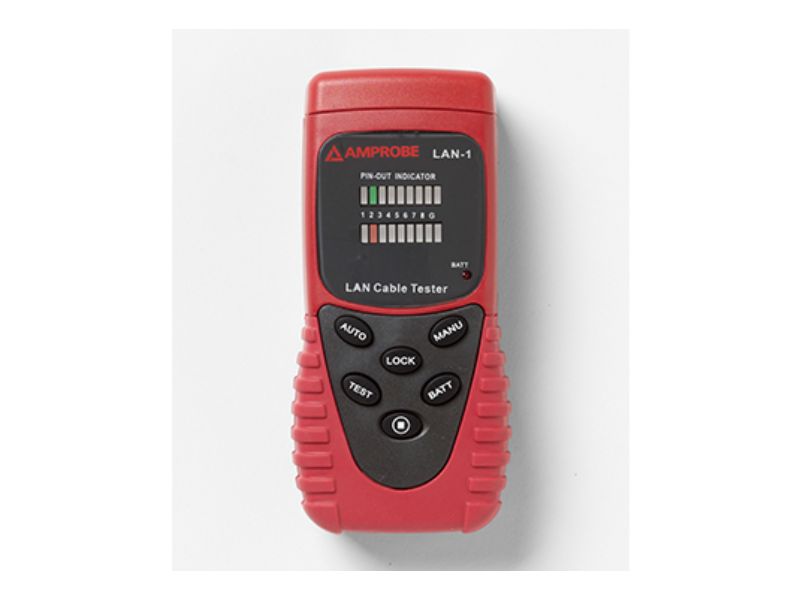

The Amprobe LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations, and works with various data cables and connectors. This cable tester provides a quick go/no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.
Specification
FEATURE |
LAN-1 |
Cable types tested |
10/100 base-T; 10 base-2; RJ45; AT T 258A; EIA / TIA 568A/568B; Token Ring |
Continuity maximum length |
> 300 meters |
Connector types |
RJ45, BNC |
Specifications |
|
Display: |
18 LEDs: 9 red and 9 green, 9 LEDs on remote module |
Battery: |
Standard 9-volt battery, NEDA 1604A, JIS 006P, IEC 6F22 |
Low battery indicator: |
The LED indicator will not turn on when BATT button is pushed |
Operating environment: |
0 to 40 °C (32 to 104 °F), 10 to 70% RH |
