- Provides non-contact AC voltage detection from 90 V AC to 1000 V AC with a CAT IV 1000 V safety rating
- Tests for AC voltage in cables, circuit breakers, wall sockets, junction boxes, fuses, and more, without requiring disconnection of the electrical system
- Issues simultaneous audible, visual, and shaker alerts when voltage is detected
- Features a fully insulated probe, with no exposed metal or conductive parts
- Safety rated for indoor and outdoor applications
Description

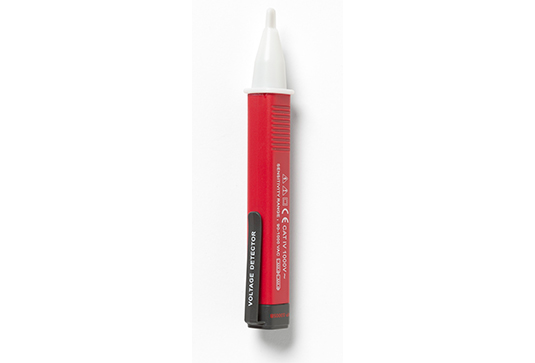

The Amprobe VP-1000SB Non-Contact Voltage Probe with shaker and beeper provides maximum safety and convenience for detecting AC voltage without interrupting electrical systems. Designed to conveniently fit in your shirt pocket, the VP-1000SB looks like a voltage detector pen; yet it performs in the toughest indoor and outdoor applications, operating as ‘always on’ with no buttons to push. The VP-1000SB provides visual, audible, and shaker alerts when greater than 90 V AC voltage is present, which allows the user to discern between hot and neutral wires in conventional outlets. Voltage probes with sensitivity levels set below 90 V often do not allow the user to distinguish between hot and neutral wires.
Specification
Operating Voltage Range |
90 V AC – 1000 V AC |
Sensitivity |
Lights, beeps and vibrates at approximately 0.39 in (10 mm) distance from a wire carrying 120 V AC |
Operating Temperature |
32 °F to 104 °F (0 °C to 40 °C), ≤ 80% RH |
Storage Condition |
14 °F to 122 °F (-10 °C to 50 °C), ≤ 95% RH |
Operating Altitude |
2000 meters |
Power Supply |
Two 1.5 V AAA batteries (installed) |
Dimensions (L x W x H) |
6.10 x 0.96 x 0.85 in (155 x 24.5 x 21.5 mm) |
Weight |
Approximately 0.11 lb (50 g) with batteries installed |
Safety Compliance |
IEC 61010-1 3rd Ed., UL61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010.1-0.92 to CAT IV 1000 V, Pollution degree 2 , IP40 |
EMC Compliance |
IEC 61326-1 |
