- True-rms technology improves accuracy in electrically noisy environments
- Measures AC/DC voltage up to 600 V, AC/DC current, resistance, frequency, capacitance, and temperature
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand” test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
- Auto and manual-ranging delivers maximum flexibility
- Backlit LCD display with analog bar graph makes it easy to view results
- CAT III 600 V safety rated
Description

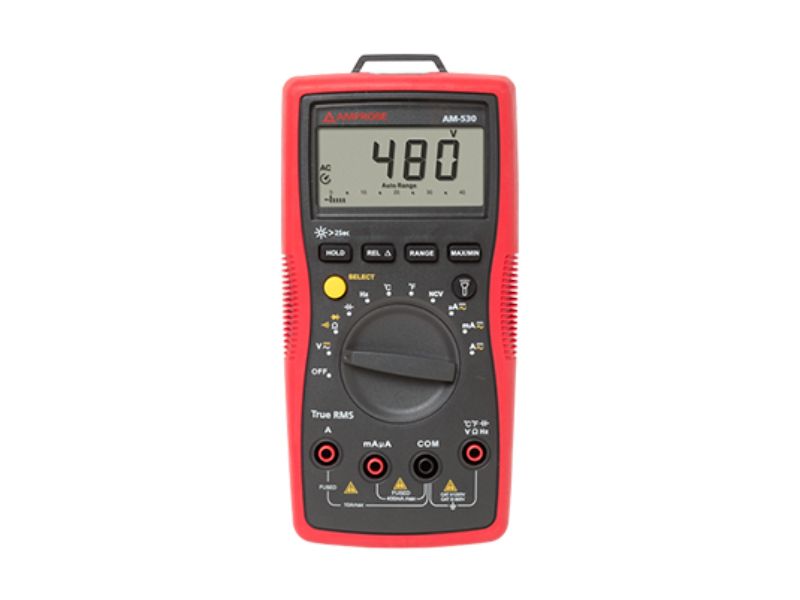

The Amprobe AM-530 autoranging digital multimeter is the multimeter of choice for professional electrical contractors. The AM-530 is a True-rms digital multimeter so it accurately measures voltage on systems affected by harmonics. With its full menu of digital multimeter features, you can use it to: measure and verify the presence of voltage before connecting new equipment or performing repairs; run new wiring; check continuity of electrical connections; identify blown fuses; troubleshoot motors or check transformers. The CAT III 600 V safety rating provides an extra measure of safety for high voltage multimeter applications. Its built-in flashlight helps you see wire colors in the dark and “third hand” probe holder gives you an extra hand when you need it.
Specification
FEATURE |
AM-530 |
Best Accuracy |
True-rms |
X |
|
AC Voltage |
400 mV, 4.000 V, 40.00 V, |
+/- (1.0 % rdg + 3 LSD) |
400.0 V, 600 V |
@ 45 Hz to 400 Hz, 4 V to 400 V ranges |
|
DC Voltage |
400 mV, 4.000 V, 40.00 V, |
+/- (0.8% rdg + 1 LSD) |
400.0 V, 600 V |
@ 4 V to 400 V ranges |
|
AC Current |
400.0 μA, 4000 μA, |
+/- (1.2% rdg + 3 LSD) |
40.00 mA, 400.0 mA, |
@ 400 μA to 400 mA ranges, 45 Hz to 400 Hz |
|
4.000 A, 10.00 A |
||
DC Current |
400.0 μA, 4000 μA, |
+/- (1.0% rdg + 2 LSD) |
40.00 mA, 400.0 mA, |
@ 400 μA to 400 mA ranges |
|
4.000 A, 10.00 A |
||
Frequency |
10 Hz to 10 MHz |
+/- (0.1% rdg + 4 LSD) |
Resistance |
400.0 Ω, |
+/- (1.0% rdg + 2 LSD) |
4.000 kΩ, 40.00 kΩ, 400.0 kΩ, |
@ 4 kΩ to 400 kΩ ranges |
|
4.000 MΩ, 40.00 MΩ |
||
