Slim Clamp Design, Measure AC/DC Current with High Accuracy, For Vehicle Power Testing
Description

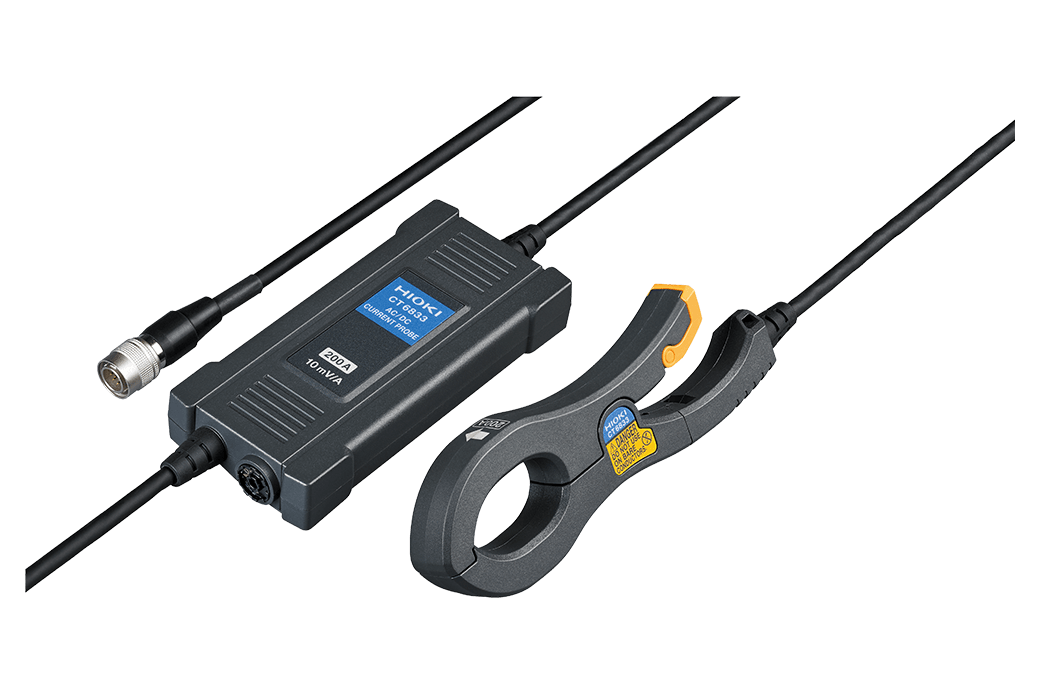

The AC/DC Current Probe CT6833 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!
Half the Size, Maximum Precision
The slim design ensures easy installation even in tight spaces.
Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces.
Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 200 A with an impressive DC accuracy of 0.07%.
Key Features
- Rated current: 200 A AC/DC
- Frequency bandwidth: DC to 50 kHz
- Measurement accuracy DC: ±0.07% rdg. ±0.01% f.s.
- Operating temp range: −40°C to 85°C, perfect for vehicle testing
- Clamp conductor diameter: φ20 mm
- Choose from 5 m/10 m cable length
Model No. (Order Code)
| CT6833 | 200 A AC/DC, Output cable length 5 m |
|---|---|
| CT6833-01 | 200 A AC/DC, Output cable length 10 m |
Specification
| Rated current | 200 A AC/DC |
|---|---|
| Frequency bandwidth | DC to 50 kHz |
| Diameter of measurable conductor | Max. φ20 mm (0.79 in.) |
| Maximum peak current | Up to ±600 A peak are permitted at a temperature of 40°C (104°F) or less and within 1 period of a periodic waveform of 10 ms or more (design value, out of guaranteed accuracy range) |
| Output voltage | 10 mV/A |
| Measurement accuracy | DC : ±0.07% rdg. ±0.01% f.s. 16 Hz ≤ f ≤ 66 Hz : ±0.07% rdg. ±0.007% f.s. Up to 20 kHz specified |
| Operating temperature and humidity range | Sensor, cable: −40°C to 85°C (−40°F to 185°F), 80% RH or less (non-condensing) Relay box: −25°C to 50°C (−13°F to 122°F), 80% RH or less (non-condensing) |
| Temperature coefficient | The following numerical values are added to the measurement accuracy according to the temperature difference with the upper and lower limits of the guaranteed accuracy temperature range (18°C or 28°C [64°F or 82°F]) if operating temperatures are outside the guaranteed accuracy temperature range (23°C±5°C [73°F±9°F]).
– Sensor – Relay box |
| Effects of conductor position | (For a conductor with an outer diameter of 10 mm) DC: ±0.03% of reading or less (±0.01% of reading Typical) 50 Hz/60 Hz: ±0.04% of reading or less (±0.015% of reading Typical) 1 kHz: ±0.1% of reading or less (±0.04% of reading Typical) 10 kHz: ±1% of reading or less (±0.3% of reading Typical) |
| Power supply | Use Hioki instruments with an ME15W connector |
| Dimensions | Sensor: approx. 149W × 46H × 16.5D mm (5.9W × 1.8H × 0.6D in.) Relay box: approx. 126W × 57H × 20.5D mm (5.0W × 2.2H × 0.8D in.) (excluding protrusions and cable) |
| Weight | CT6833: approx. 500 g (17.6 oz.) CT6833-01: approx. 710 g (25.0 oz.) |
| Output cable length | CT6833: approx. 5 m ([16.4 ft.] including relay box) CT6833-01: approx. 10 m ([32.8 ft.] including relay box) |
| Included accessories | Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1 |
