- Optional accessory for Amprobe UAT-600 Underground Utilities Locator Series
- Works in conjunction with the UAT-600-T Transmitter
- Locate cable and wires ground faults, sheath faults or pipeline coating defects (direct contact of the utility with the ground is required to pinpoint a fault)
- Used to find the point where metal is touching the ground (shield is rusted/rubber buffer is broken) and power is leaking, creating noise on a cable
- Find the point of leakage around a cable (ground faults are common problems with electric cables) – saves money by pinpointing leakage point
- Adjustable volume control
- Advanced technology and digital signal processing makes pinpointing process fast, accurate and unambiguous:
-
- Compass guidance with numeric fault field strength indicates direction to the place of the fault
- Distance sensitive left/right guidance guides the user to precisely follow the path of the buried utility
- Automatic gain control quickly detects tracing signal and precisely adjust A-Frame sensitivity
-
Description

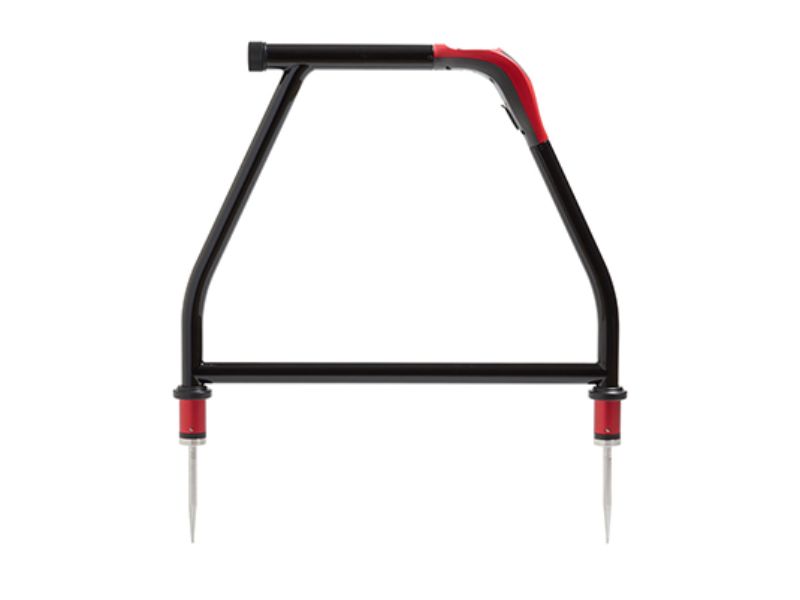

The AF-600 A-Frame cable ground fault finder is specifically designed for the Amprobe UAT-600 Underground Utilities Locator Series. In combination with the UAT-600 Transmitter, it will pinpoint the place where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground. It can also detect other conductors to ground faults such as pipeline coating defects.
Specification
Features
|
AF-600 A-Frame
|
Tracing mode (de-energized)
|
8 kHz
|
Locating mode
|
Ground fault locating
|
Sensitivity (typical)
|
Cable locate mode at 1 meter depth: 10 uA Fault locate mode: up to 2 MΩ fault |
Display backlight
|
Automatic
|
Audio indication
|
Speaker indicates left/right by pulsed/continuous tone
|
Compatible transmitter
|
UAT-600-T Transmitter
|
Display
|
1.28 in, 128 x 128 BW outdoor LCD display with auto backlight
|
Update rate
|
Instantaneous
|
Operating temperature and humidity
|
-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
|
Storage temperature and humidity
|
-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
|
Operating altitude
|
< 6561 ft (< 2000 m)
|
Pollution degree
|
2
|
Water and dust resistance
|
IP54
|
Drop proof
|
3.28 ft (1 m)
|
Power supply
|
(6) 1.5 V AA alkaline batteries
|
Auto power off
|
15 minutes idle
|
Battery life
|
Approx. 60 hours at 70 °F (21 °C) (Typical)
|
Agency approval
|
|
Safety compliance
|
IEC 61010-1 CSA/UL 61010-1 |
Size (H x W x L)
|
Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)
|
Weight
|
Approx. 4.2 lb (1.9 kg) (batteries installed)
|
